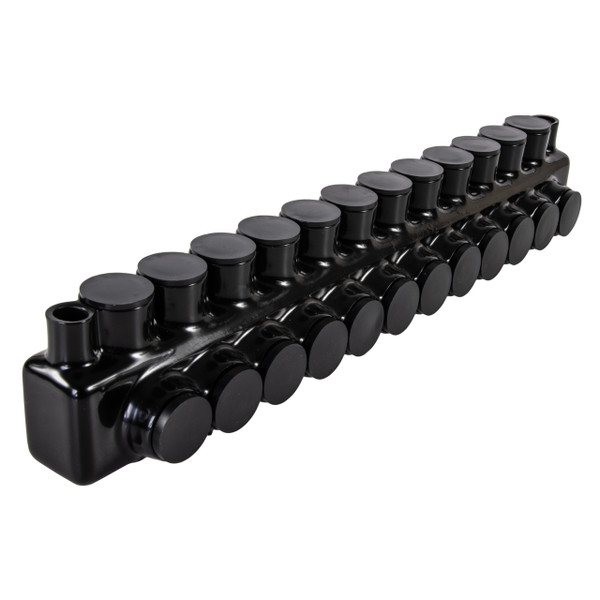

Polaris IPLMD750-12 750-250 Mcm Non -Ul Insulated Multi-Tap Conn 12 Port (Dual Sided Entry & Mountable)

Polaris Black Multi-Tap Mountable Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

• Dual-Side Wire Entry: Form secure connections between 12 conductors quickly using the double-side entry ports sized for wires between 750 MCM - 1/0 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
• Mounting Holes: Installation is simple with mounting holes on either side of the connector to attach directly to panels or troughs using 1/4" bolts
• Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
• Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
• Pre-filled Oxide Inhibitor: All 12 dual-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
