Product Overview

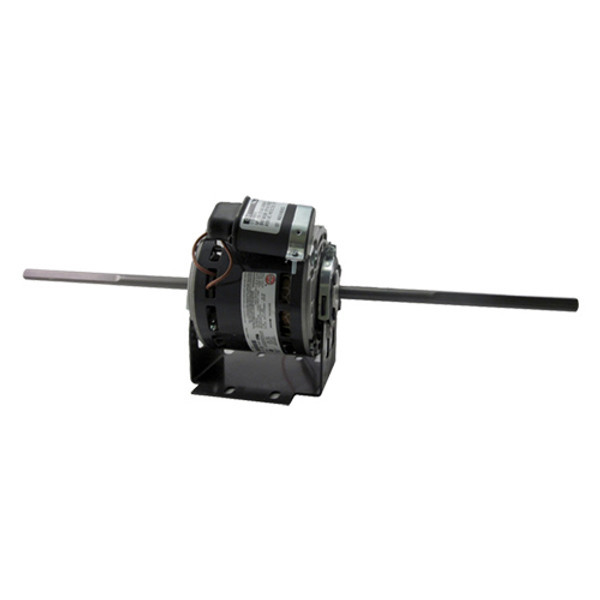

US Motors 2832 Double Shaft Direct Drive Blower Motor 115 V
- Permanent Split Capacitor
- Double Shaft Direct Drive Blower
- 5.0" Dia Open Air Over (OAO)
- Packaged Terminal A/C Heat Pump
- Resilient Base
| Model_Number: | K048WGM0192013B |
| PRODUCT NAME: | .1 HP - OPAO - 1050 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | OPAO |
| HORSEPOWER: | .1 |
| KILOWATTS: | 0.1 |
| POLES: | 6 |
| NUMBER SPEEDS: | 5 |
| RPM: | 1050 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 V |
| VOLTS : | 115 |
| FRME : | 42 |
| SHAFT CODE: | Y |
| STATOR DIAMETER: | 4.8 |
| STACK: | 1.25 |
| MOUNTING: | CRADLE |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | SELF-ALIGN |
| SHAFT END BEARING: | SELF-ALIGN |
| AMBIENT: | 40 |
| ROTATION: | CW LEAD END |
| SERVICE FACTOR: | 1 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 14 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 20.81 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 6.434 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 5.54 |
| FULL LOAD AMPS PRIMARY: | 2.5 |
